Grafton, MA Roof Replacement: Damaged Plank Decking To A Stronger New Roof System
Project Overview
Location: Grafton, Massachusetts
Home: Single-story home built in 1965
Project type: Complete asphalt-shingle roof replacement with roof-deck repairs
Visible concerns: Aged shingles, lichen and moss growth, exposed fasteners, deteriorated sealants and chimney flashing, debris around the skylight, and damaged plank decking
Roof-system materials: 31 SQ of GAF Timberline HDZ shingles in Pewter Gray, GAF Deck-Armor roof deck protection, and GAF StormGuard leak barrier, skylight flashing kits
Detail work shown: Skylight integration, chimney transition work, ridge-cap shingles, and a renewed pipe-boot assemblu
Roof Replacement in Grafton, MA Reveals Damaged Plank Decking
A roof can look tired from the outside and still be hiding a much bigger problem underneath. That was the case at this 1965 home in Grafton, Massachusetts. The existing three-tab shingles showed widespread age, organic growth, exposed fasteners, and wear around several roof penetrations. More importantly, a view from inside the home showed daylight passing through a damaged section of the wood roof deck.
The photos documented a roof that had moved beyond a cosmetic update.
The project required a full tear-off, a careful evaluation of the traditional plank decking, correction of damaged and open sections, and the installation of a complete roofing system designed to protect the home at its most vulnerable details.
The Roof Was Giving More Than One Warning

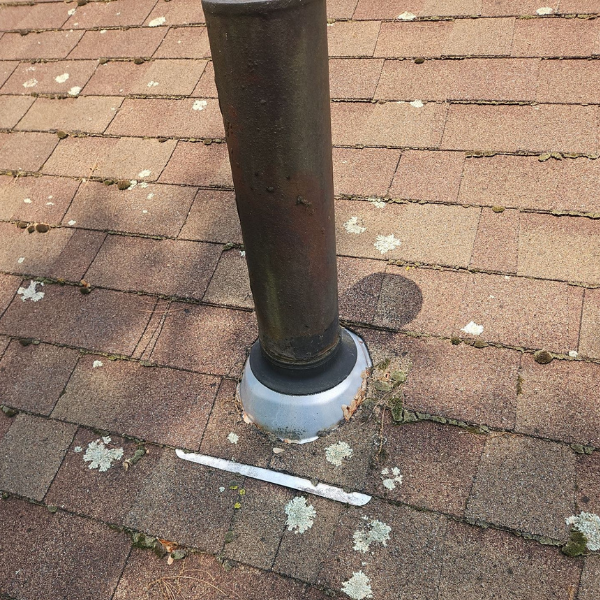

The old roof surface had the unmistakable look of a system nearing the end of its useful service life. The shingles were weathered and dotted with lichen, with growth collecting along the shingle edges. In several areas, fasteners were exposed through the shingle surface. Around the plumbing vent, the metal-and-rubber flashing assembly was surrounded by debris and aging materials.

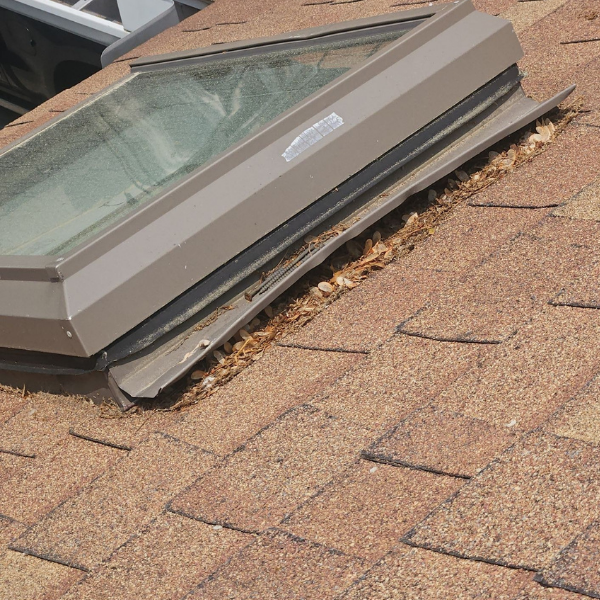

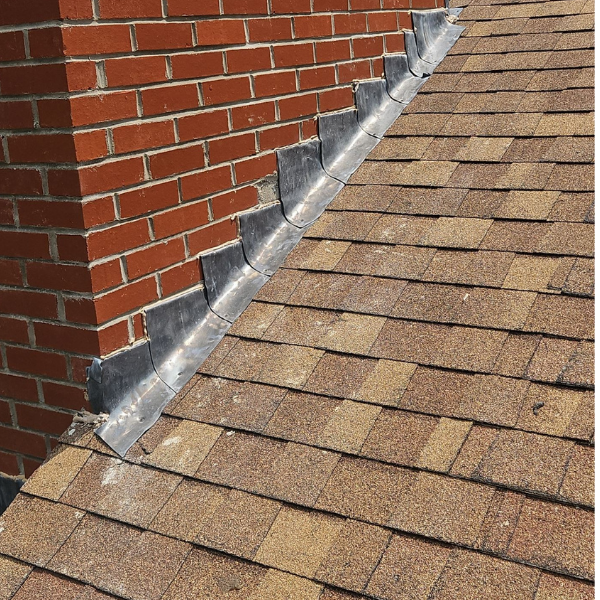

The chimney was another concern. Its flashing had been repeatedly patched with sealant, and the close-up photographs show lifted metal, open seams, exposed screws, and areas where the flashing no longer formed a clean, dependable transition between the brick and the roof. Around the skylight, leaves and debris had collected along the lower flashing channel—exactly where water needs an unobstructed path down the roof.

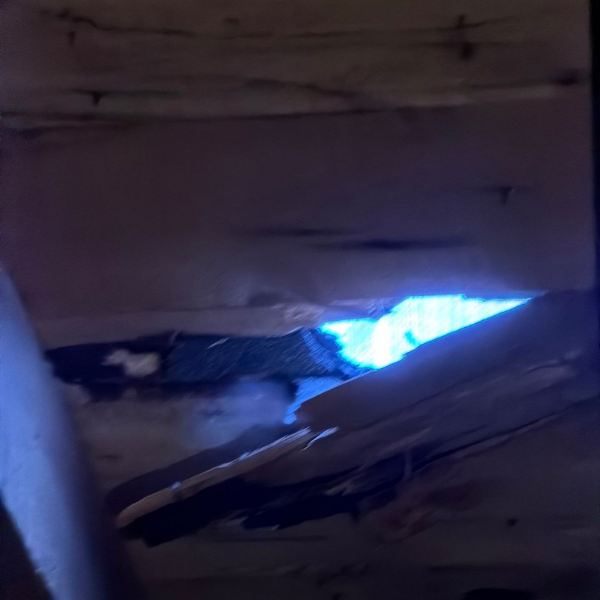

Then came the clearest warning of all: from inside the home, daylight was visible through a broken section of the roof deck.
That image changed the story from “old shingles” to “a roof assembly that needed to be opened and rebuilt.”
Tear-Off Confirmed the Hidden Condition

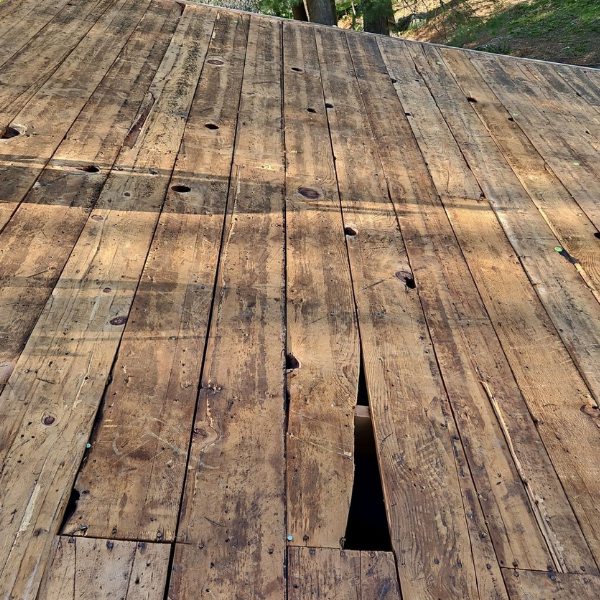

Once the existing shingles and underlayment were removed, the home’s wood plank decking was fully exposed. Much of the deck remained in place, but the photographs show multiple openings, split or deteriorated boards, old cutouts, and areas that could not provide a continuous nailing surface for the new shingles.
This is why a responsible roof replacement is more than installing a new surface. Shingles depend on the roof deck beneath them. Any weak, broken, or open areas must be corrected before the protective layers and finished roofing are installed. Covering compromised decking would leave the new roof dependent on an unstable base and could allow hidden problems to continue.
A useful lesson for older homes
Traditional plank decking is common in houses of this era. Sound boards may remain serviceable, but gaps, broken sections, previous cutouts, and moisture-damaged wood have to be addressed during tear-off. The deck can only be judged accurately once the old roofing is removed.
Rebuilding the Roof as a Complete System

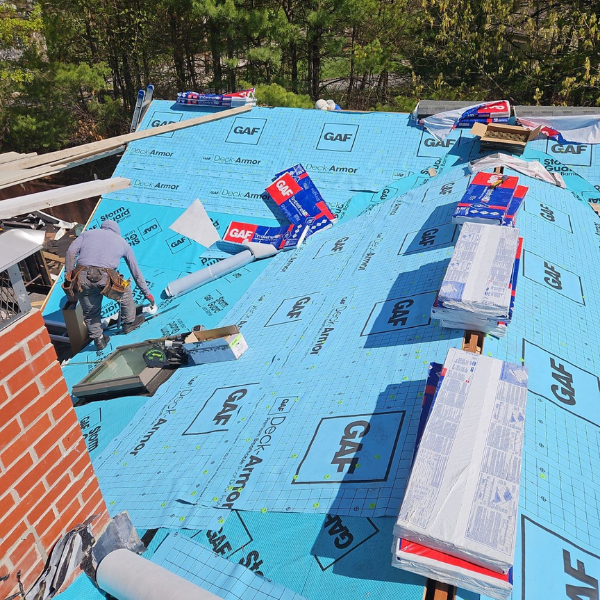

After the deck was made ready, Master Roof installed the protective layers visible in the project photographs. GAF StormGuard leak barrier was placed at vulnerable areas, while GAF Deck-Armor covered the main roof field to create a continuous secondary layer beneath the shingles. The existing skylight was integrated back into the roof assembly, and the chimney and pipe-penetration areas were rebuilt into the new system rather than simply covered over.

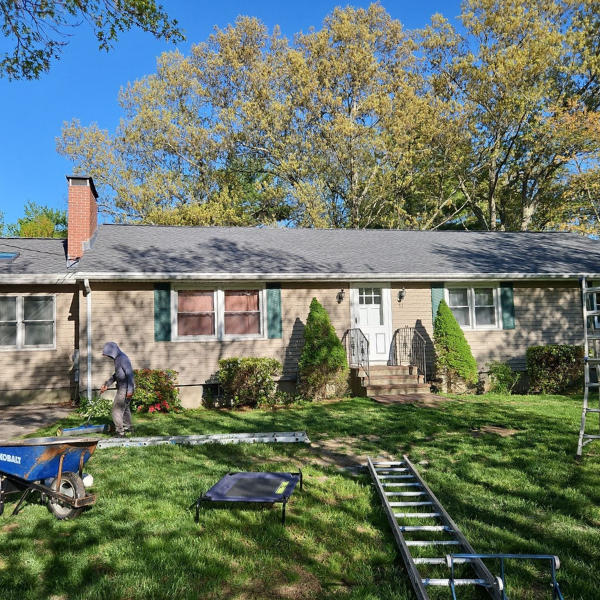

The finished roof was installed with GAF Timberline HDZ architectural shingles. Compared with the flat, aging three-tab roof that came off the house, the new dimensional shingles give the home a cleaner profile and greater visual depth. Matching ridge-cap shingles complete the roof lines, while the darker shingle blend works well with the brick chimney, neutral siding, and established character of the home.

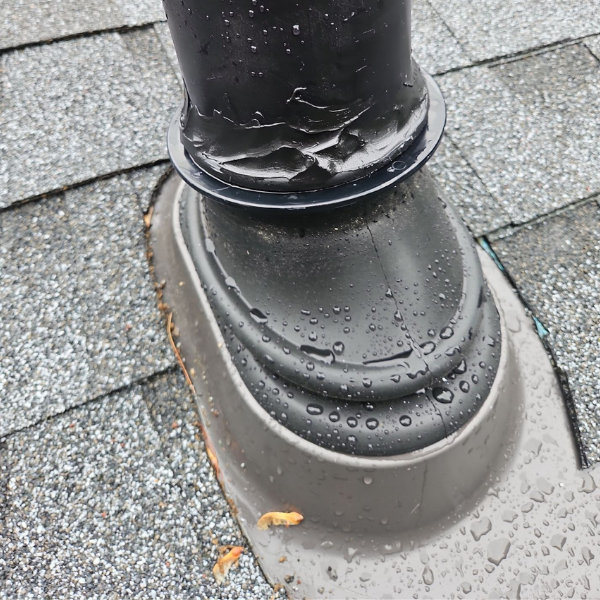

The completed pipe-boot photograph is a particularly good example of the detail work that matters. The new flashing base is woven into the surrounding shingles, and the vent pipe has a renewed, sealed collar. Small penetrations like this are common leak points, so their installation is just as important as the broad roof surfaces.
The Result: A Sound Base, Better Protection, and a Cleaner Finish
By the end of the documented installation, the home had more than a new shingle color. It had a corrected roof deck, a continuous underlayment system, renewed protection around the skylight, chimney, and plumbing vent, and a finished architectural-shingle roof that suited the home’s proportions.
The biggest improvement is the part most people will never see from the ground: the damaged plank decking was no longer hidden beneath an aging roof. The new roof was built from the deck outward, giving the visible finish the solid foundation it needed.
What Grafton Homeowners Can Take From This Project
A roof does not have to be missing large sections of shingles to need professional attention. Organic growth, repeated caulking around flashing, exposed fasteners, debris trapped around skylights, stains inside the home, or daylight visible from the attic can all point to problems that deserve a closer look. On an older home, the condition of the decking may remain unknown until the roof is opened.
Planning a roof replacement in Grafton or the surrounding area? Master Roof can evaluate the visible roof, explain what may be happening beneath the shingles, and build a replacement plan that accounts for the roof .
Contact Master Roof today for a thorough structural inspection.
Frequently Asked Questions
What problems were found on this Grafton roof?
The photographs show aging three-tab shingles, lichen and moss growth, exposed fasteners, debris around the skylight, heavily patched chimney flashing, and damaged wood plank decking. An interior photo also showed daylight passing through an open section of the deck.
Why was a full roof replacement needed instead of another repair?
Several details had already been patched, but the roof surface and the underlying deck both showed broader deterioration. Once the deck has open, broken, or weakened areas, a localized surface repair cannot correct the full roof assembly.
Can existing plank roof decking be reused during a replacement?
Yes, when the planks are sound, properly secured, and able to support the new roof. Damaged boards, large openings, weak sections, and unsuitable previous cutouts need to be repaired or replaced before underlayment and shingles are installed.
What signs suggest that roof decking may be damaged?
Warning signs can include soft or sagging areas, recurring leaks, staining, visible rot, daylight from the attic, or sections that feel unstable during a professional inspection. The full condition is often confirmed only after the old roofing is removed.
Why is chimney flashing so important?
A chimney interrupts the roof surface and creates multiple transitions where water must be redirected. Loose metal, open seams, exposed fasteners, and repeated surface caulking can indicate that the flashing detail needs more than another bead of sealant.
How long does a roof replacement take?
The primary tear-off, roof-system installation, and completed-roof photographs for this project were documented on the same workday. Actual timing varies with roof size, complexity, weather, decking repairs, material delivery, and site conditions.
