Medfield, MA Roof Replacement: When Part of Your Roof Is Too Flat for Shingles

Key Takeaways

• A 2000-built Medfield, MA home on its original roof — most of it a standard replacement, but one section was below the 2:12 minimum pitch required for asphalt shingles.
• Shingles are water-shedding, not waterproof. Below 2:12 they leak eventually no matter how well they are installed.
• This was not an old-house quirk — the section was shingled on a modern home, a reminder that pitch errors are not limited to antique properties.
• That section was rebuilt as a sealed membrane roof, so every plane is now covered by a system rated for its own pitch.
• Heavy granule loss, moss, and moisture trapped under old felt paper confirmed the shingles were at end of life at roughly 26 years.
• Failing spike-and-ferrule gutters had opened a gap at the fascia, letting water run behind and rot the wood.

The Short Version

Most of this roof replacement in Medfield, MA was straightforward: the home was built in 2000, the original shingles had reached the end of their life at around 26 years, and they needed to come off. But one section of the roof had a problem no shingle could solve, no matter how well it was installed. The pitch was too low for shingles to work at all.

That section did not need better shingles. It needed a different kind of roof.

Finding One: The Shingles Were Done

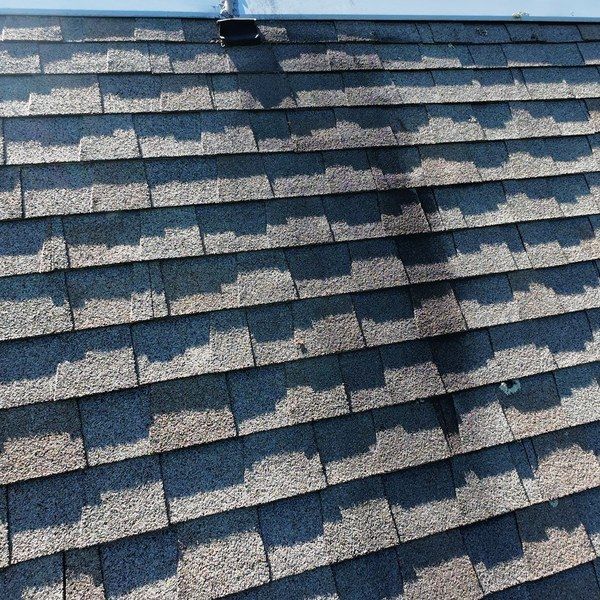

The visible signs were all present together. Large areas had gone dark — not dirt, but the asphalt showing through where the protective granule layer had worn away. Moss and algae had taken hold in the shaded sections, which happens when moisture gets trapped under the asphalt shingles and the old felt paper below swells like a sponge and holds it there.

Staining across the shingle surfaces also traced the path water was taking underneath them rather than over them.

Finding Two: The Gutters Were Pulling Away

The gutters were the older style, hung with spikes and ferrules. Over time those spikes work loose from the wood, and a gap opens between the back of the gutter and the fascia board. Water then runs down behind the gutter instead of through it, and the fascia rots from behind where nobody sees it.

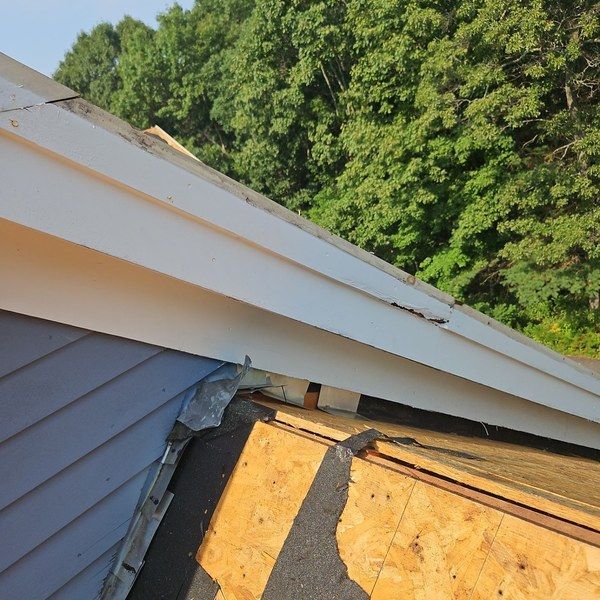

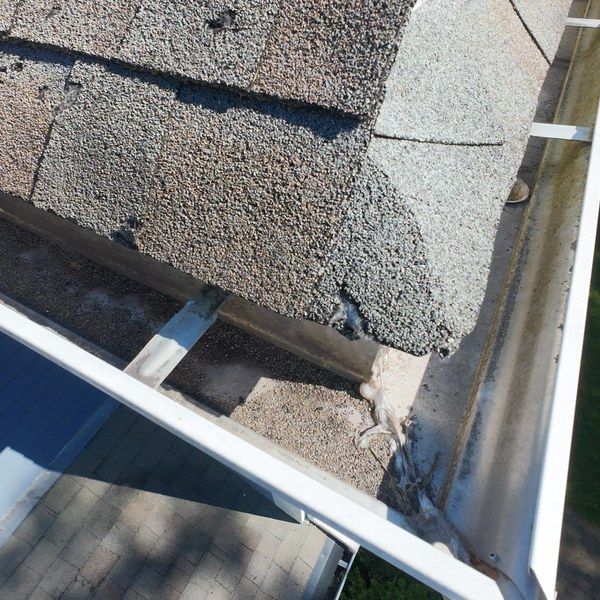

The gutters were also carrying a load of granules — one of the earliest and most reliable signals that shingles are near the end. We found rot at the eave and sidewall where water had been getting in, and improper ice and water shield beneath the siding that had let the problem start in the first place.

Finding Three: A Section Below the Minimum Roof Pitch for Shingles

Asphalt shingles are water-shedding, not waterproof. They rely on gravity moving water off the roof quickly, each course overlapping the one below it. Manufacturers require a minimum pitch of 2:12 - two inches of rise for every twelve inches of run - and below that threshold water slows down, ponds, and eventually works backward under the overlaps.

One section of this roof measured below that minimum. It had been shingled anyway. Even installed perfectly, and even with ice and water barrier underneath, that assembly leaks eventually — it is a question of when, not whether

Worth noting: this is a home built in 2000, not a centuries-old farmhouse. Pitch problems are not a quirk of antique properties. They show up any time a section is built or added at a shallower angle than the main roof and then shingled to match the rest for appearance.

For any roof plane under 2:12, the correct answer is a membrane system: EPDM rubber roofing or rolled roofing, which is sealed rather than overlapped and does not depend on slope to keep water out.

What We Did

The roof was rebuilt as two systems that meet cleanly at the transition.

On the steep-slope sections

• Full tear-off to the deck, with the existing OSB sheathing inspected before reuse.

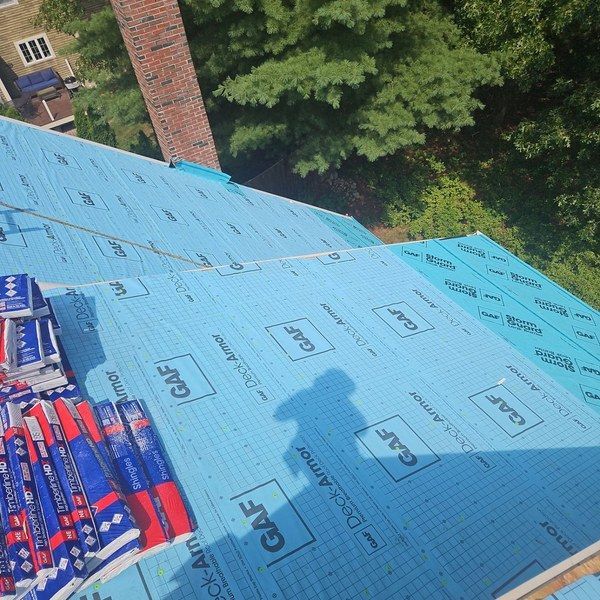

• GAF StormGuard leak barrier at the eaves, valleys, and penetrations, with extra coverage added at the areas that had leaked previously.
• GAF Deck-Armor synthetic underlayment across the full deck.
• The sheathing at the ridge cut back to open proper exhaust, and the old ridge cap vent replaced with a current-generation ridge vent.
• Ice and water membrane wrapped under the siding at the roof-to-wall transitions to stop the rot cycle at its source.
• New metal flashing where the roof meets the house wall.
• GAF Timberline HDZ architectural shingles.

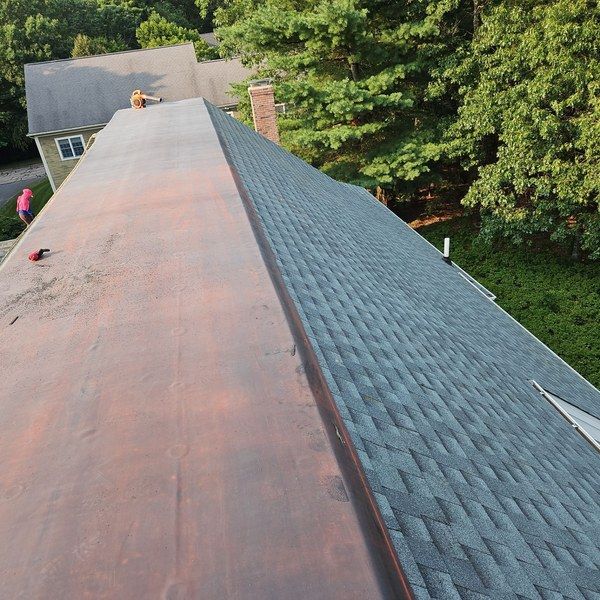

On the low-slope section

• Shingles removed entirely and the section rebuilt as a sealed membrane roof appropriate to its pitch.
• Roof penetrations and vents reset into the new membrane.
• A clean, detailed transition where the membrane meets the shingle field — the point most likely to leak if it is rushed.

And the gutters

The failing spike-and-ferrule gutters and the rotted fascia behind them were addressed as part of the project, so the new roof drains into something that actually holds it.

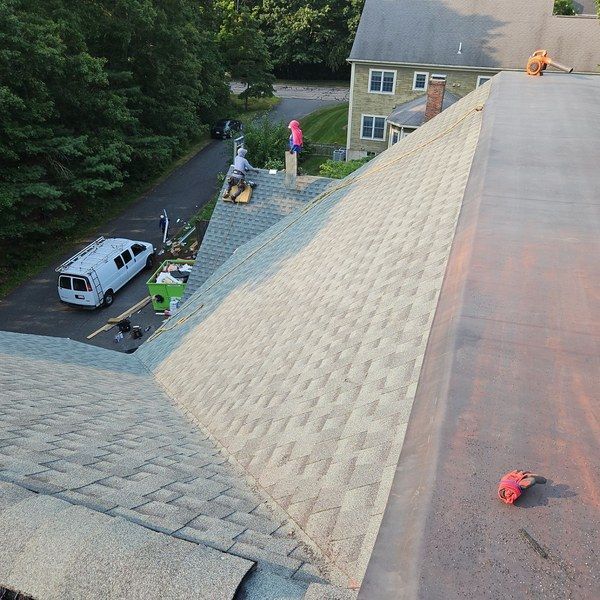

The Result

The homeowner now has a roof where every plane is covered by a system rated for its own pitch — shingles where shingles work, membrane where they do not. The chronic leak points at the sidewall and the low-slope section are gone, and the drainage path from ridge to ground has been rebuilt end to end.
